PathMinder optical turnstiles & doorway tailgate sensors ( p r o d u c t s )
TrueCount System Administrator

features overview. system requirements. downloads. screen shot tour.

Computer requirements
  • 64 MB memory
  • 500+ MB free hard disk space for logs; fast hard disk (10 000 RPM U320 SCSI or SATA) recommended for optimal performance
  • Windows 2000 Professional or XP Professional recommended
    (XP Professional x64 Edition is not supported at this time)
  • Works well with a touch screen; typical guard desk functions can be used without a keyboard
Connection requirements
  • One RS-232 serial connection for each lane (i.e., seven COM ports on the computer to monitor seven lanes simultaneously)
  • Maximum of 60 lanes
Connection options

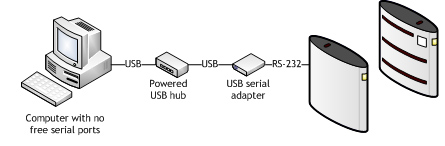

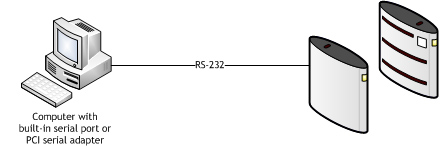

  • For short distances (less than 35 feet)

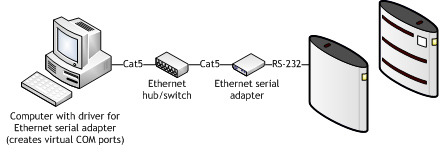

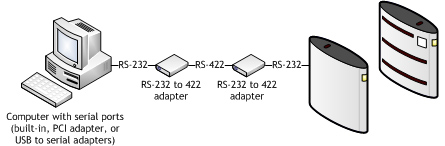

  • For longer distances (up to 4000 feet)


Optical turnstiles
Doorway sensor (12×04")
Basic non-barrier (13×06")
Oval non-barrier (27×09")
Drop arm barrier (44×09")
Swing arm barrier (60×09")
Glass barrier (54×20")
Glass barrier (60×20")
Glass barrier (98×20")
Control software
Desktop control panels
Deployment platforms
People counters
Custom housings
