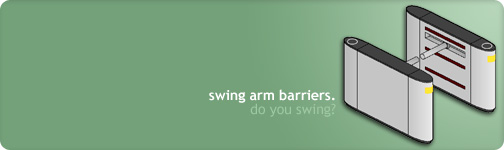

Optical turnstiles with swing arm barriers

info. photos. video. specs.

Bidirectional swinging arm barriers intelligently control traffic flow while optimizing traffic throughput.

Safe. An infrared detection matrix monitors the area near the barrier; if an object is detected in the path of the barriers, they slow to a crawl until the obstruction is removed. Soft-throw barriers move with negligible force. In an emergency, anyone may activate the barriers with a firm push; in a power failure, the barriers can be gently pushed out of the way.

Smart. Barriers always move away from the authorized pedestrian. Barriers stay open while additional authorized people walk through--even if they are walking in the opposite direction.

Secure. Quarter-inch tailgate detection offers excellent protection against intruders. Barriers close very quickly as soon as a person has cleared the barriers' path, deterring would-be tailgaters. Sensors catch attempts to crawl under or vault the barriers.

Sophisticated. Twenty four sensors create a dense 96 beam detection net. Compact motors offer smooth, silent barrier operation.

Certain. False alarm rate is negligible; detects and ignores briefcases, purses, dollies, walkers, and guide dogs.

Programmable. Configure each direction for card access or free passage on-the-fly.

Skinny. Slim housings offer the protection of a barrier while fitting in tight corridors and maintaining an open look. Dimensions make it suitable for upgrades to existing sites that use typical competitors' units.

Speedy. Offers real-world throughput of 30 people per minute.

Accessible. Meets ADA at a 36" lane width.

Reliable. Designed for 100% uptime. Sensors are tolerant of severe misalignment, and never need to be re-aligned.

Maintainable. Requires only a simple greasing every six months.
