PathMinder optical turnstiles & doorway tailgate sensors ( p r o d u c t s )

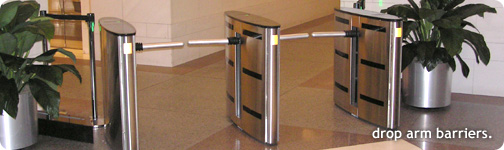

Optical turnstiles with drop arm barriers

info. photos. video. specs.

Drop arm optical turnstiles offer straightforward, safe barriers in a slim housing.

Safe. Dedicated safety beam matrices monitor the area near the barrier to assure it does not catch a purse/backpack or hit a guide dog. "Break away" barriers are hinged such that, in an emergency, anyone may open the barriers with a firm push.

Secure. Quarter-inch tailgate detection offers excellent protection against intruders. Barriers close very quickly as soon as a person has cleared the barriers' path, deterring would-be tailgaters. Sensors catch attempts to crawl under or vault the barriers.

Sophisticated. Twenty four sensors create a dense 96 beam detection net. Servo motors offer smooth, silent barrier operation.

Certain. False alarm rate is negligible; detects and ignores briefcases, purses, dollies, walkers, and guide dogs.

Programmable. Configure each direction for card access or free passage on-the-fly.

Skinny. Slim housings (44½" x 9½" x 41" LWH) offer the protection of a barrier while fitting in tight corridors and maintaining an open look.

Speedy. Offers real-world throughput of 30 people per minute.

Upgradeable. Get barrier-free units now and easily add barriers later. Add the extra security of a barrier as your needs increase. Spread equipment costs over multiple years.

Accessible. Meets ADA at a 36" lane width.

Reliable. Designed for 100% uptime. Sensors are tolerant of severe misalignment, and never need to be re-aligned.

Maintainable. Requires only a simple greasing every six months.


Optical turnstiles
Doorway sensor (12×04")
Basic non-barrier (13×06")
Oval non-barrier (27×09")
Drop arm barrier (44×09")
Swing arm barrier (60×09")
Glass barrier (54×20")
Glass barrier (60×20")
Glass barrier (98×20")
Control software
Desktop control panels
Deployment platforms
People counters
Custom housings
